| Model | UG-0905A-2.7Z5 | |
| Item | Unit | Specifications |
1 | Rated Voltage（Square Wave） | V | 5.0 |
2 | Operating Voltage | V | 4-6 |
3 | ＊Rated Current（Max） | mA | 80 |
4 | ＊Min Sound Output at 10cm | dB | 85 |
5 | ＊Resonant Frequency | Hz | 2700 |
6 | Coil Resistance | Ω | 45±5 |
7 | Operating Temperature | ℃ | -20~+70 |
8 | Storage Temperature | ℃ | -30~+80 |
9 | Weight | g | 1.0 |
10 | Housing Material | NORYL | |

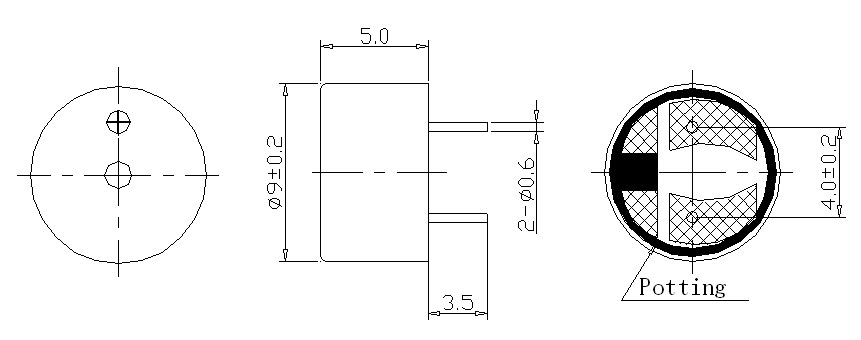

11. Drawing(Fig1) Unit: mm Tolerance:±0.5mm
